Sub-Zero troubleshooting & codes
Sub-Zero Troubleshooting Guide
What common alarms, service codes and control-panel behaviors usually mean — plus the safe checks to run first and a clear "call us when…" line, for Fremont and the Tri-City.
- $89 service call waived
- 365-day labor warranty
- Genuine OEM parts
- Same-/next-day windows
The short answer
Most Sub-Zero alarms and codes are the unit asking you to check something simple before they signal a real fault. A high-temp alarm often follows a door left ajar; a "clean condenser" reminder means it is running hot; a dead panel usually clears or confirms a board fault after one power-cycle. Signals vary by generation, so note your exact display and model rather than trusting a generic chart, then call (650) 668-1172 for a verified read. The $89 service call is waived when you book the repair, with a 365-day labor warranty.
How to use this Sub-Zero troubleshooting guide
Sub-Zero displays changed a lot across the generations — a classic side-by-side, a 600-series column and a newer touch-control built-in all signal trouble differently. That is why a generic online "code list" can send you down the wrong path. This guide explains what the most common alarms and panel behaviors usually mean, gives you safe checks to run, and shows where the line is between a homeowner fix and a service call.
The single most useful thing you can do is write down exactly what your panel shows — the characters, any blinking icons, alarm text — along with your model and serial. With that, we can match the signal to your specific unit and arrive prepared. When you are ready, call (650) 668-1172 or book online.
A note on codes: accuracy over guesswork
We deliberately do not publish a one-size-fits-all Sub-Zero code chart, because the same character can mean different things across models and could send you toward the wrong part. Instead, note your exact display and let us confirm it against your model and serial. An accurate read on site is worth more than a guess from a generic table — and it keeps you from buying parts you do not need.
| Signal | What it usually indicates | Safe first step |
|---|---|---|
| High-temperature alarm | Cabinet rose above target — often a door left ajar, a big load, or a power blip; sometimes a real cooling fault | Confirm doors sealed; monitor recovery for a few hours; book if it keeps returning |
| "Clean condenser" reminder | Condenser is overdue and the unit is running hot | Vacuum the condenser at the grille; reset the reminder; have airflow checked if cooling does not improve |
| Door-ajar signal | Unit thinks a door is open — seal, alignment, switch or magnet | Check the door closes flush and the gasket is intact; book a switch check if it persists |
| Sensor / probe fault | A temperature sensor is reading out of range | Rule out a blocked vent or frosted coil; book a metered diagnosis to confirm the sensor |
| Unresponsive control panel | Control board, ribbon connection or power-supply issue | Do one clean power-cycle; if still dark, book a diagnosis |
| Flashing display or unfamiliar code | A condition the unit wants you to acknowledge or service | Record the exact display and model; call so we can match it to your unit |
| Vacuum-condenser / airflow warning | Restricted airflow over the condenser | Clear dust and obstructions around the grille; book if the warning recurs |
General guidance only — exact meaning depends on your model and generation. We confirm the signal against your model and serial before any repair.
Safe checks you can run first
- 1
Record the exact display
Note the characters, blinking icons or alarm text precisely, plus your model and serial from the cabinet tag.
- 2
One clean power-cycle
Switch off at the control or breaker, wait two to three minutes, then restore power and let it settle. Do this once, not repeatedly.
- 3
Check doors and seals
Confirm both doors close fully and flush, gaskets are intact, and nothing inside blocks the door or the air vents.
- 4
Clean the condenser
Vacuum the condenser at the grille to clear dust and lint, then reset any cleaning reminder per your manual.
- 5
Verify the set points
Make sure the fridge and freezer set points are in the normal range and have not drifted or been changed.

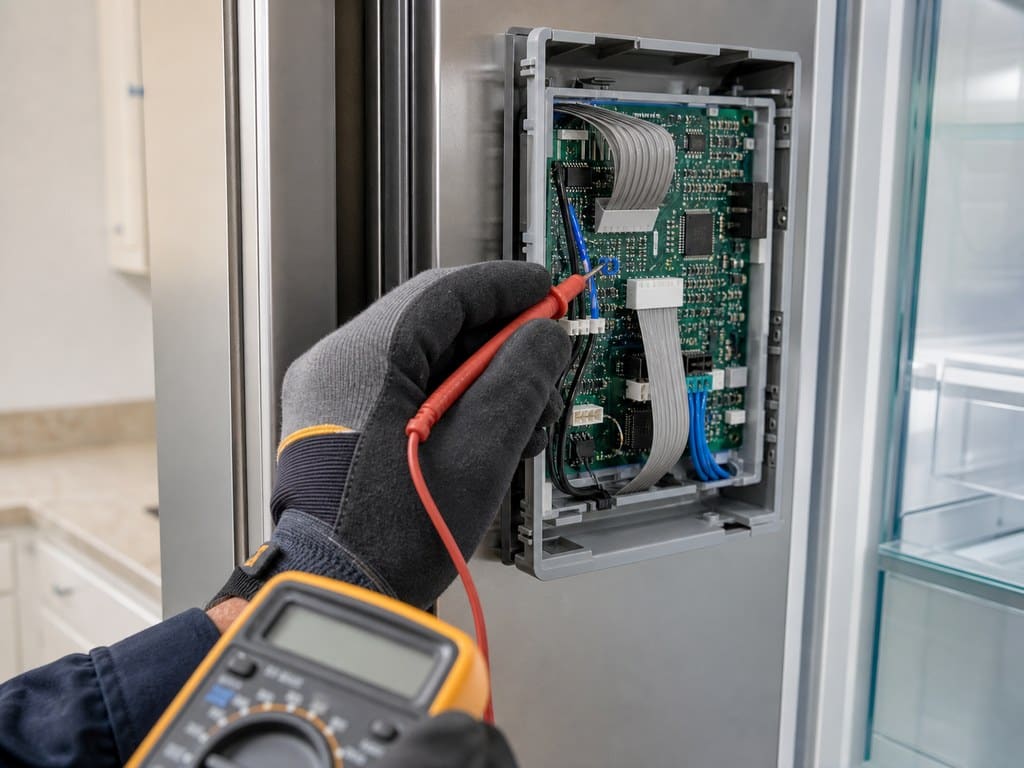

How we read the panel on site
When a panel is throwing a code or has gone unresponsive, we start by matching the exact display to your model and serial — not a generic chart. From there we verify electrically: power supply, ribbon and harness connections, sensors and the control board are each confirmed with a meter so we know what is actually faulty before any part goes in.
That sequence matters most with control-board and sensor symptoms, where swapping parts on a guess is expensive and rarely fixes it. We fit model-correct, genuine OEM components, then prove the result before we leave.
Call us when…
Some signals are worth a call rather than more home troubleshooting. Reach out when:
- The control panel stays dark or unresponsive after one clean power-cycle
- An alarm or code keeps returning after you have checked doors, seals and the condenser
- Temperatures will not recover, or the fresh-food side stays above about 40°F
- You see heavy frost choking the vents or water pooling inside or on the floor
- A signal mentions the sealed system, compressor, or anything refrigerant-related
- A sensor or board fault is indicated — these need a meter and genuine OEM parts, not guesswork
Genuine OEM parts, factory-spec procedures
We fit factory-certified, genuine OEM Sub-Zero parts and our work follows Sub-Zero service specifications. As an independent specialist we diagnose against your model rather than swapping parts on a hunch. Your $89 service call is waived when you book the repair, and every job carries a 365-day labor warranty.
Why model-specific diagnosis beats a generic code chart
Signals vary by generation
The same icon or character can mean different things on a classic, 600-series or touch-control unit.
We verify electrically
Sensors, harnesses and boards are confirmed with a meter before any part is ordered or fitted.
No parts you do not need
An accurate on-site read saves you from buying the wrong component off a guess.
Proven before we leave
We confirm the fault is cleared and temperatures hold, then back the labor for a full year.
Where to go next
If your unit is simply warm rather than throwing a code, the not-cooling symptom guide matches warm-fridge, frost and alarm patterns to likely causes. To get an accurate quote, look up your model and serial number first. When a signal points at the mechanics, the sealed system and compressor page explains how we confirm it with gauges.
Want costs up front? Our repair pricing page breaks it down by job, and our repair-or-replace guide helps when a quote looks steep. When you are ready, call (650) 668-1172 or book online with your display and model noted, and we will arrive prepared.
| Check | How to do it | What it rules out |
|---|---|---|
| Door seal | Close a slip of paper in the door and tug — it should grip all around | A warm cabinet from a leaking gasket |
| Condenser / grille | Vacuum dust from the base grille and the condenser behind it | Warm-running from a clogged, overheating condenser |
| Set points | Confirm fridge ~37F and freezer ~0F at the control panel | A unit that was simply set too warm or in a special mode |
| Power-cycle | Switch cooling off at the panel, wait a minute, switch back on | A one-off control glitch versus a real fault |
| Airflow / vents | Make sure food is not blocking the interior vents | Uneven cooling caused by blocked internal airflow |
| Water supply | Check the saddle valve and line are open and not kinked | No-ice and no-water issues that are just a supply problem |
These safe checks often explain the symptom; if it persists, book a metered diagnosis.
Stuck on a code, alarm or dead panel? Note what it shows and your model, and we will match it to your unit before quoting.
Diagnostics done right, reviewed
Recent Sub-Zero troubleshooting and control-panel jobs across Fremont and the Tri-City.
1,184 reviews · 4.9 / 5
Older Niles house, older built-in fridge. The technician explained exactly why the fresh-food side was warm while the freezer stayed cold and fixed it without trying to upsell a whole new unit. The 365-day labor warranty made the decision easy.
Fresh-food compartment crept up to the low 50s while the freezer was fine. They diagnosed a failing evaporator fan and a frosted coil, defrosted it properly and replaced the fan with a genuine Sub-Zero part. Cold and quiet again the same day.
Freezer was running but not actually freezing. The technician traced it to the defrost system instead of guessing, and explained how to spot it if it ever happens again. Genuinely knowledgeable about Sub-Zero, not generic appliance guys.
Sub-Zero troubleshooting — FAQ
How do I read a Sub-Zero service code?
Sub-Zero displays vary by generation, so codes and icons differ between classic, 600-series and newer touch-control units. Rather than trusting a generic online code chart, note exactly what your panel shows — the characters, blinking icons or alarm text — and have it matched to your specific model. We identify the signal against your model and serial, then confirm on site before quoting. Call (650) 668-1172 with the display in front of you.
My Sub-Zero control panel is not working or unresponsive — what should I try first?
Start with one clean power-cycle: switch the unit off at the control or the breaker, wait two to three minutes, then restore power and let it settle. If the panel stays dark or buttons do nothing after that, it usually points to a control board, ribbon connection or power-supply fault that needs a meter to confirm. Avoid repeated on-off cycling, which does not help and can mask the real fault.
What does a Sub-Zero high-temperature alarm usually mean?
A high-temp alarm means the cabinet rose above its target long enough to trip the warning. Common, harmless triggers are a door left ajar, a recent large grocery load, or a brief power interruption — temperatures should recover within a few hours. If the alarm keeps returning, the box stays warm, or you see frost choking the vents, it signals a cooling fault worth diagnosing.
My Sub-Zero says the condenser needs cleaning — is that serious?
That reminder usually means the condenser is overdue for cleaning, which makes the unit run hot and work harder. Vacuum the condenser at the grille (top or base depending on model) and clear any dust and lint, then reset the reminder per your manual. If cooling does not improve after a proper cleaning, or the alarm returns quickly, have the fan and airflow checked.
How do I know if a Sub-Zero door is being read as ajar?
A door-ajar signal means the unit thinks a door is open. Confirm both doors are fully closed and flush, the gasket is not torn or folded, and nothing inside is blocking the door from seating. Wiping the seal and the cabinet edge can help it close cleanly. If the alarm persists with the door clearly shut, the door switch or magnet may be at fault and should be checked.
Can I fix a Sub-Zero sensor fault myself?
You can rule out the easy causes — a blocked vent, a frosted evaporator, or a recent power event — but a genuine sensor fault needs a meter to confirm which thermistor is reading out of range, plus a genuine OEM replacement and a verified result afterward. We diagnose it against your model rather than swapping parts on a guess, which keeps the repair accurate and protects your labor warranty.
Is it safe to keep using my Sub-Zero while a code or alarm is showing?
If temperatures are still in range and food is safe, you can keep using it while you arrange service, and leaving it powered lets us read live behavior on arrival. If the fresh-food side is above about 40°F, move perishables to a working unit. Do not add refrigerant, force a frosted coil, or attempt board-level work — those can turn a small repair into a larger one.
When should I stop troubleshooting and call you?
Call when a panel is dead or unresponsive after one power-cycle, when an alarm or code keeps returning, when temperatures will not recover, when you see heavy frost or water pooling, or any time a signal mentions the sealed system or compressor. We serve Fremont and the Tri-City with same-day or next-day windows, genuine OEM parts, a waived $89 service call when you book the repair, and a 365-day labor warranty.
